Subsurface Floatation Specifications
 |
|||
| Steel
Sub-Surface Buoys
Low cost sub-surface buoys are available from BuoyTec. These spherical buoys are available in the standard sizes and depth ratings listed below. Features include welded steel construction, two (2) welded pad eyes, 5000 lbs. in-line tension capacity, cathodic protection, and rugged marine epoxy topcoat. All buoys are leak tested to ensure reliability. In
addition to standard sizes, BuoyTec manufactures custom sub-surface
floation to meet your particular requirement. Contact BuoyTec for
details. |
|||
|
Model
|
Diameter (in.) |
Net
Buoyancy
(lb.) |
Working
Depth
(ft.) |
Air Weight
( lb.) |
|
SB-30
|
30
|
365
|
1335
|
160
|
|
SB-37
|
37.5
|
725
|
1215
|
303
|
|
SB-41
|
41
|
960
|
1215
|
384
|
Notes:
- Average working Depth computerd to provide minimum safety factor of 1.3. Actual working depth of individual spheres available upon request.

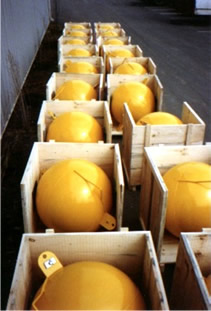

- Crating for Overseas Shipment Available upon request.
- Normal Delivery 30 days ARO
Testing thru-tension capacity of 72 in buoy with 18,000 lb dead-weight.
